Nested Wave Springs Carbon / Stainless Steel / 17-7PH(SUS631)

Product Categories
Zhejiang Lisheng Spring Co.,Ltd
Contact Now

Nested Wave Springs Carbon / Stainless Steel / 17-7PH(SUS631)

  • 1
  • 2
  • 3

Brand Name : lisprings

Model Number : NSSR

Certification : ISO9001 IATF16949

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Supply Ability : 10000000

Delivery Time : 7 work days

Packaging Details : Bulk packaged or Customize

Name : Nested Wave Springs

Length : Non-standard as request&design

Non-standards : OEM is available if you provide a drawing or sample

FOB Port : Shanghai or Ningbo

Sample : Free(If there is ready-made goods)

Product standards : GB,DIN,BS,ISO,JIS,ANSI,UNC

Contact Now

Nested Wave Springs manufacturer Carbon/stainless steel/17-7PH(SUS631)

Description:

1.Nested Wave Springs are pre-stacked in parallel from one continuous filament of flat wire.

2.The need to stack individual springs for higher loads is no longer necessary.

3.Nested springs result in a spring rate that increases proportionally to the number of turns.

4.They can exert tremendous forces, yet maintain the precision of a circular-grain wave spring.

5.In many applications, Nested Wave Springs replace Belleville Springs, particularly in cases where

a high but accurate force is needed.

Specification:

Part No. Operates in
Bore Diameter		 Lears Shaft
Diameter		 Load Work Height Free Height Waves Turns Thinkness Radial Wall Spring Rate
mm mm (N) mm mm mm mm N/MM
NSSB-0063-L3 19 13.36 106.8 1.83 3.31 3 2 0.25 1.98 72
NSSB-0075-L2 22 15.75 124.6 1.88 3.14 3 2 0.3 2.39 99
NSSB-0075-L3 24 17.02 133.5 1.88 3.73 3 2 0.3 2.39 72
NSSB-0087-L2 26 18.14 142.4 2.34 3.37 3 2 0.36 3.18 137
NSSB-0087-L3 28 20.07 151.3 2.34 3.79 3 2 0.36 3.18 104
NSSB-0095-L2 30 21.87 169.1 2.34 4.42 3 2 0.36 3.18 81
NSSB-0095-L3 32 23.67 178 2.39 4.07 3 2 0.41 3.38 106
NSSB-0102-L2 35 26.42 195.8 2.39 4.94 3 2 0.41 3.38 77
NSSB-0102-L3 37 28.65 204.7 2.44 4.72 3 2 0.46 3.38 90
NSSB-0110-L2 40 31.01 222.5 2.44 5.7 3 2 0.46 3.38 68
NSSB-0110-L3 42 33.5 231.4 2.44 3.71 4 2 0.46 3.38 182
NSSB-0118-L2 47 38.18 258.1 2.44 4.52 4 2 0.46 3.38 124
NSSB-0118-L3 52 42.37 284.8 2.97 4.15 4 2 0.61 3.76 242
NSSB-0126-L2 55 45.31 302.6 2.97 4.48 4 2 0.61 3.76 200
NSSB-0126-L3 62 50.65 338.2 2.97 4.93 4 2 0.61 4.52 172
NSSB-0138-L2 68 56.16 373.8 3.53 4.94 4 2 0.76 4.78 265
NSSB-0138-L3 70 58.14 382.7 3.53 5.12 4 2 0.76 4.78 241
NSSB-0146-L2 72 60.07 391.6 3.53 5.32 4 2 0.76 4.78 219
NSSB-0146-L3 75 62.97 409.4 3.53 5.68 4 2 0.76 4.78 191
NSSB-0158-L2 80 67.49 436.1 3.53 6.37 4 2 0.76 4.78 154
NSSB-0158-L3 85 70.26 462.8 3.53 6.29 4 2 0.76 5.92 168
NSSB-0165-L2 90 74.98 498.4 3.53 7.13 4 2 0.76 5.92 138
NSSB-0165-L3 95 79.65 525.1 3.53 8.08 4 2 0.76 5.92 115
NSSB-0185-L2 100 85.42 551.8 3.53 5.27 5 2 0.76 5.92 318
NSSB-0185-L3 12.7 9.02 62.3 1.47 2.62 3 2 0.2 1.02 54.95
NSSB-0205-L2 15.88 11.3 89 1.5 2.92 3 2 0.23 1.47 62.48
NSSB-0205-L3 19.05 13.28 124.6 1.83 3.58 3 2 0.25 1.98 71.23
NSSB-0217-L2 22.23 15.88 142.4 1.88 3.38 3 2 0.3 2.39 95.2
NSSB-0217-L3 25.4 18.82 160.2 1.88 4.83 3 2 0.3 2.26 54.25
NSSB-0244-L2 28.58 20.5 178 2.34 4.17 3 2 0.36 3.18 96.6
NSSB-0244-L3 31.75 23.39 195.8 2.39 4.19 3 2 0.41 3.38 108.85


Product Tags:

Stainless Steel Nested Wave Springs



Carbon Steel Nested Wave Springs



SUS631 Wave Spring

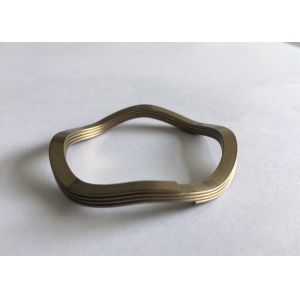

China Nested Wave Springs Carbon / Stainless Steel / 17-7PH(SUS631) wholesale
